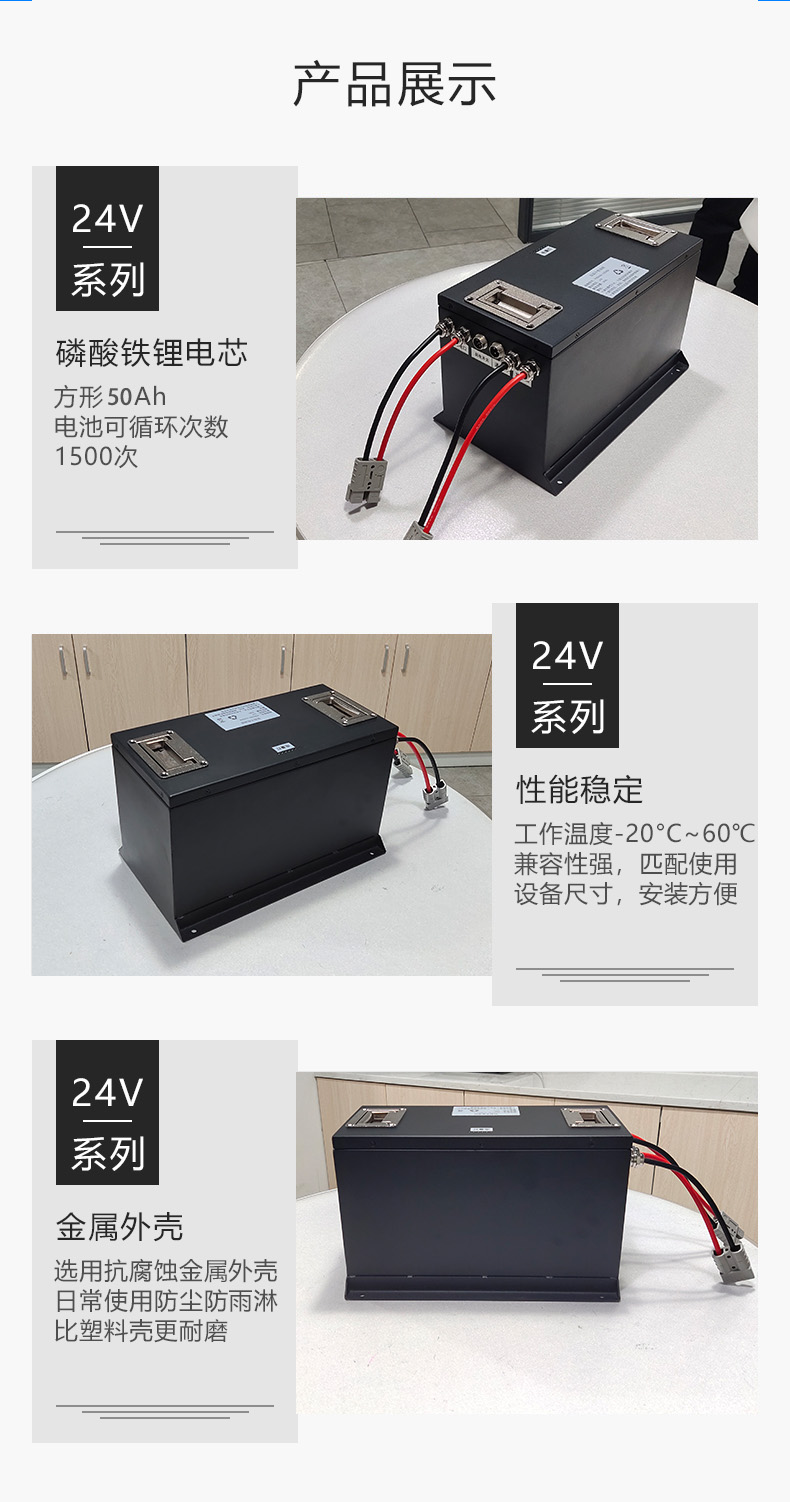

DGPI-8S50Ah-020AGV Traction Trolley Lithium Battery Pack
time：2025-02-25
Parameters：
Specifications DGPI-8S50Ah-020
1 Brand Assurance: optional Brand Cell
2 Long Life: battery Cycle Times> 2000
3 System Security: equipped with Smart BMS to Monitor the Battery Status in Real Time and Protect the Battery
| Model |
DGPI-8S50Ah-020AGV traction trolley lithium battery pack |
| battery Specification |
8S1P/25.6V/50Ah |
| nominal Voltage |
25.6V |
| nominal capacity |
50Ah |
| Charging voltage | 29.2V |
| charging current |
≤ 30A |
| discharge current |
≤ 50A |
| discharge overcurrent protection Current |
60A(5s), 80A(100ms) |
| discharge cut-off voltage |
22V |
| Cell specifications | yuhuang/square 50Ah/lithium iron phosphate |
| finished product internal resistance |
≤ 40 Mohm |
| battery weight |
50Kg ± 3Kg |
| product Size |
l750mm*W160mm*H400mm(Max) |
| charging temperature protection |
0°C to 55°C |
| Discharge temperature protection | -20°C ~ 60°C |
| battery shell |
metal Shell |
| lithium battery protection |
short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, equalization, etc. |
| Communication mode |
RS485 & RS232 |
